Switchboard Upgrades for Baulkham Hills Homes
A switchboard built in the 1970s was never asked to carry a pool pump, a home office and a car charger at once.
Baulkham Hills has thousands of family homes still running the original board, and most of them are past due for a look.
An upgrade swaps ageing fuses for modern protection, sized for how the house is actually used now. Call (02) 9134 9024 for a fixed written price, with $50 off your first job.
How to Tell You Need Switchboard Upgrades
Boards rarely die in one clean moment. They send warnings first, and most homeowners ignore two or three before calling.
Here's what we'd want you to notice:
- The safety switch trips the moment two appliances run together
- Ceramic fuses are still standing in for a proper circuit breaker
- There's no RCD protecting some or all of the circuits
- A building inspection flagged the board directly
- Lights flicker or dim whenever something large switches on
- You're planning an EV charger, ducted cooling or an induction cooktop
One or two of these on their own might be a minor fix. Several together usually mean the board itself is the ceiling on what the house can run.
What Our Switchboard Upgrades Work Covers
We treat this as a full replacement job, not a patch-and-hope exercise on gear that's already failing.
Modern protection throughout. Every circuit gets its own RCBO or safety switch, replacing whatever fuses or partial protection existed before.
Board sized for the house. Capacity is set against what's actually installed and what's likely coming, not the bare minimum to pass inspection.
Clear circuit labelling. Whoever opens that board next, tradesperson or homeowner, can read it at a glance.
Any other defects sorted. If something else non-compliant turns up mid-job, we point it out and price it before touching it.
Got a pool on the block already, or planning one? Mention it while we're there, since pool circuits carry their own bonding and RCD rules.
What Affects the Cost of Switchboard Upgrades
Every quote starts with a look at the existing board, free and with no call-out fee attached.
What tends to move the quote:
- The circuit count the new board needs to handle
- How the meter box sits and whether access is tight
- The state of the cabling already running into it
- Standard safety switches versus a full RCBO setup
- Compliance issues uncovered once the old board's off
Once we've seen it, the price is locked in writing, and $50 comes off if this is your first booking with us.
Solid double-brick construction, common on the older streets off Seven Hills Road, often means the meter box is set flush into masonry. That kind of fixed access is usually the reason a job runs longer than the board swap itself would suggest.
What We See in Baulkham Hills Homes
The suburb's growth ramped up hard from the 1960s, and a large share of those original family homes are still standing, still occupied, still on their first switchboard.
Ceramic rewireable fuses are common in that stock, sitting in boards that were never brought up to current circuit protection.
A typical case near Seven Hills Road: a single-storey 1970s build that's since had a second storey and a rear extension added, all feeding back through a board designed for a much smaller footprint.
That board was fine running a fridge and the hallway light. It isn't fine carrying a renovated kitchen, ducted air and a pool pump on top.

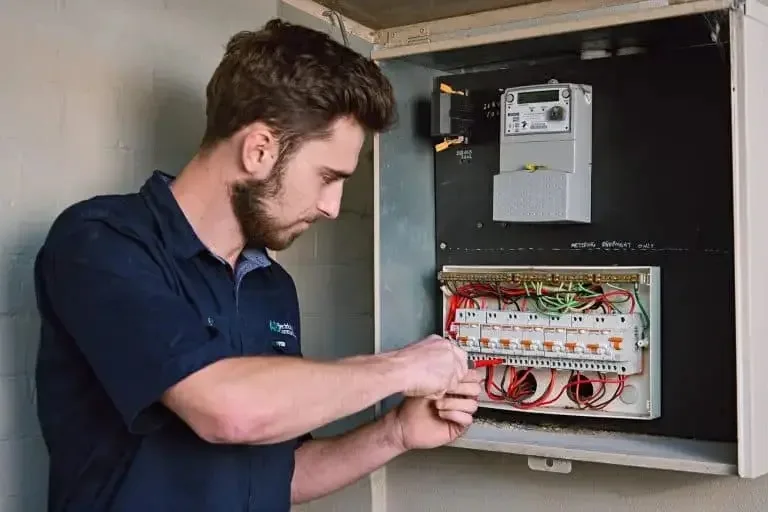

How We Work Through a Switchboard Upgrades Job
- Look and quote. We inspect the board and access points, then hand over a fixed price in writing.
- Cut power and pull the old unit out. The meter's isolated, the existing board is removed, and we keep the work area protected.

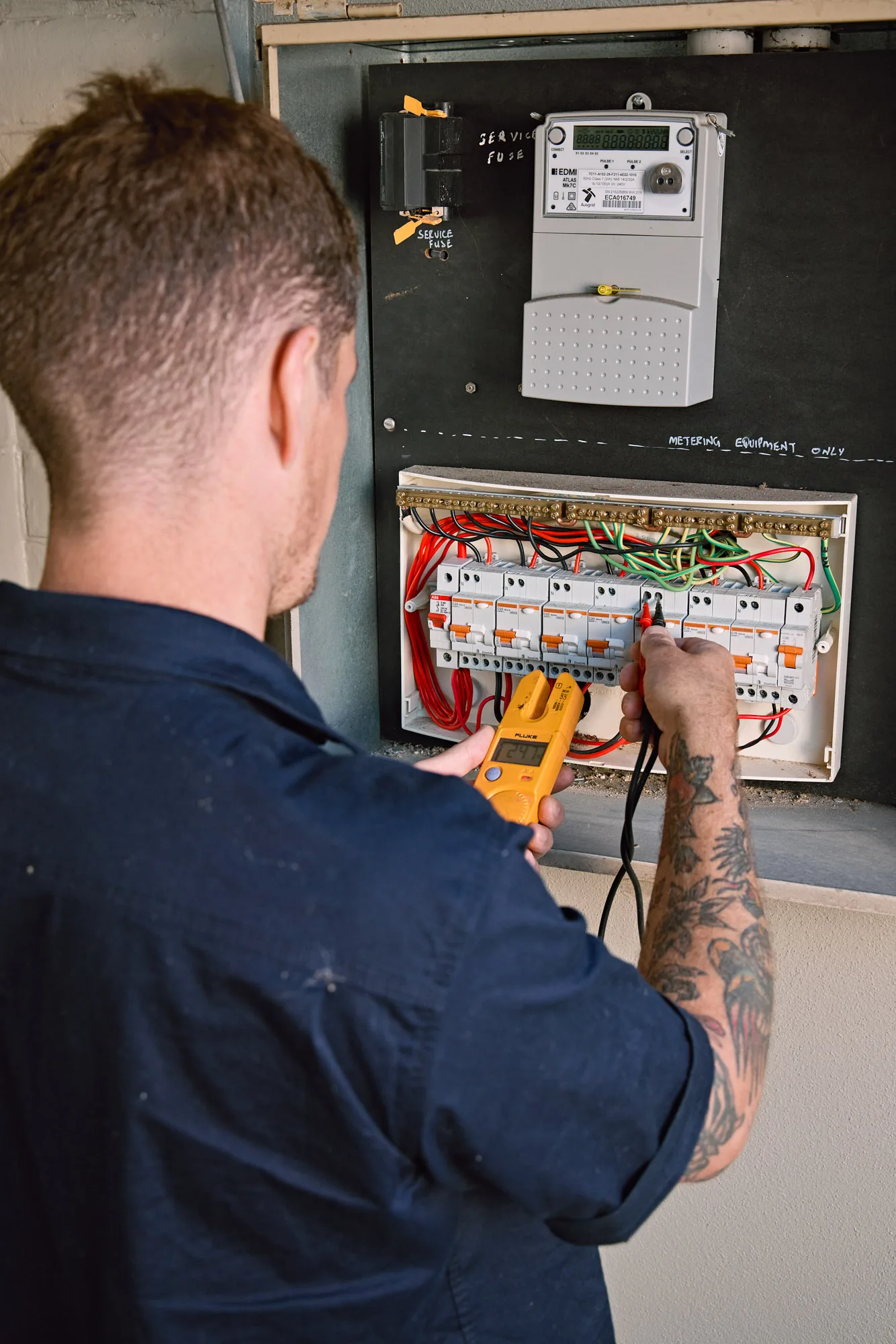

- Fit and test circuit by circuit. The new board goes in, and we run each safety switch through its own test before signing off on it.
- Label, explain, and lodge paperwork. We run through the changes with you and get the compliance certificate moving.
A clean swap on a standard house takes about half a day. Add pool circuits or extra defect work and it runs longer, which we'll flag at quote stage, not on the day.
Standards and Paperwork, Explained Simply
This falls under notifiable electrical work per AS/NZS 3000, meaning it's licensed-only and tested before anyone signs off.
Current rules call for a safety switch (RCD) on every circuit, a standard plenty of older Baulkham Hills boards were installed well before.
Once the job's done, the compliance certificate goes to NSW Fair Trading. Keep a copy of it for insurance and, eventually, for settlement.
DIY electrical work carries real legal weight in NSW: it's illegal, and a switchboard is the exact job that rule was written to stop people attempting alone.
Why Locals Choose Us for Switchboard Upgrades
We don't cut corners on gear. What goes into your board is chosen because it holds up over decades, not just past the warranty period.
Cheaper imported breakers can fail quietly, without warning. Quality gear tends to give you notice first.
Every board carries our lifetime workmanship guarantee, and nothing about the price shifts once you've signed off on the written quote.
Servicing Nearby Homes Too
Switchboard upgrades keep us busy right across Baulkham Hills, and out into Castle Hill, Winston Hills, Bella Vista and Northmead.
Thinking bigger than one board? Our residential electrician page covers whole-of-home work, and it's worth pricing EV charger installation in at the same visit if a car's on the way.
Every era of house on our patch gets the same standard.
Book Your Switchboard Upgrades Today
Ring (02) 9134 9024 and we'll set a time to come out and assess the board properly.
You'll get a plain-spoken explanation of what's needed, then a written cost before anything's decided.
Common questions
Your Switchboard Upgrades FAQs
These are the questions that come up most when Baulkham Hills homeowners ring about a switchboard.
How do I know it's time for switchboard upgrades?
A board that trips repeatedly, still runs ceramic fuses, or has no safety switch fitted is telling you plainly. We inspect it on the spot and give a straight answer.
Can you do switchboard upgrades in older homes?
This job exists mainly for older homes. A cramped meter box from the 1970s changes nothing about what we're able to fit in its place.
Is a permit or notification needed for switchboard upgrades in NSW?
It's notifiable work, so once testing is finished we lodge a Certificate of Compliance for Electrical Work with NSW Fair Trading on your behalf.
Do you supply the materials or can I buy my own?
The board, breakers and safety switches are all part of the quote. We supply premium gear as standard, never a cheap import.
Can I choose the brand of gear for switchboard upgrades?
Clipsal and Hager are what we fit by default, and we're happy to talk through alternatives. Whatever's agreed goes into the written quote before we start.
Can you do switchboard upgrades in a Baulkham Hills unit or strata building?
Yes, strata boards run to the same standards as a house. Getting owners corporation approval sorted before the booking date saves everyone a delay.
